Dayliff Manual 1.1KW Pump Controller

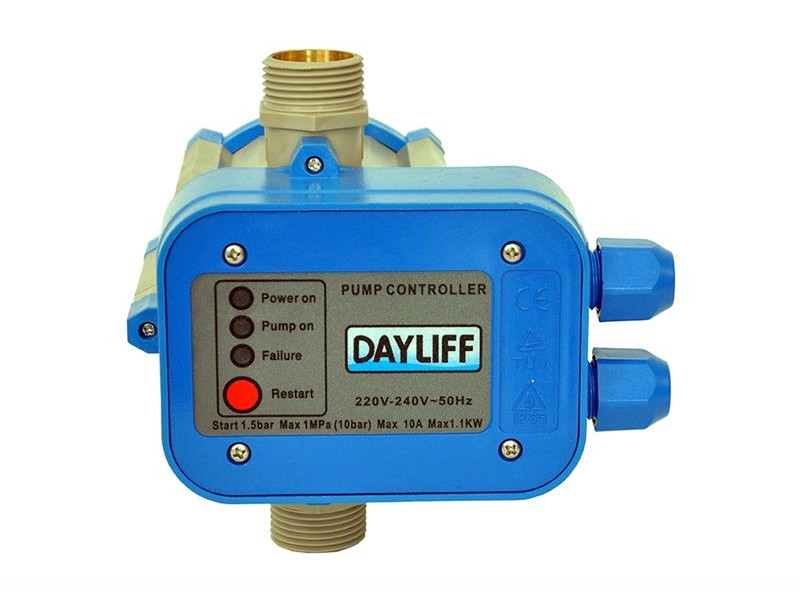

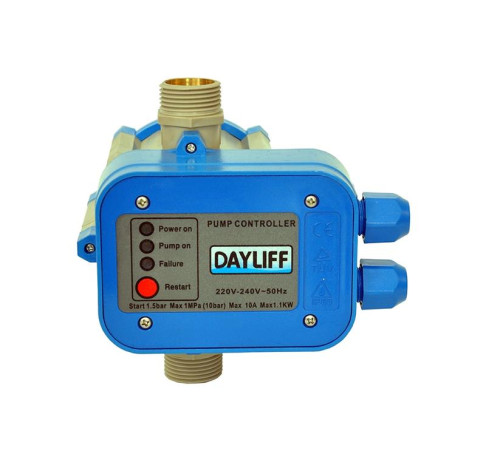

PRESSCON CONTROLLERS
An in-line electronic pump controller for automatic operation of pressurised water supplies. Features include:-

• Starts pump on pressure (fixed at 1.5 Bar) and stops on low flow
• Dry run protection provided. Standard models require manual reset, Automatic models restart when supply returns (Positive suction)
• Incorporates a spring activated hydraulic accumulator to control pump cycling
• LED power on, pump run and run dry indicators

Max Motor size: 0.75kW (Auto), 1.1kW/1ph (Manual)
Max Current: 10A
Max Operating Pressure: 10Bar
Connection: 1"M
Dimensions (L/W/H): 227x130x168mm (Manual), 210x110x110 (Auto)
Protection: IP54(Auto), IP65 (Manual)

SUPERPRESS CONTROLLER

High specification in-line electronic pump controllers for automatic operation of pressurised water supplies. Features include:-

• Starts pump on pressure or through the flow sensor (minimum 1.5litres/min)and stops on low flow. The controller automatically senses the pipe pressure and regulates the starting pressure.
• Dry run protection provided and restart when supply returns (positive suction)
• Incorporates a spring activated hydraulic accumulator to control pump cycling
• LED power on, pump run, dry run indicators and delay timer
• Settable delay timer for tank filling (P)
• Built in pressure gauge for pressure monitoring (P)

Max Motor size: 2.2kW/1 ph
Max Operating Pressure: 10 Bar
Max Current: 10A
Connection: 1"M
Protection: IP65
Voltage: 90-260V
Dimensions (L/W/H): 192x140x90mm

MAXCON PUMP CONTROL

Multi functional electronic controllers for operation and running of single and three phase pumps. Features include: overload protection, dry-run protection, over/under voltage protection, phase loss protection (3 phase units) and transient surge protection.

The Controllers have LCD display including running status and error conditions that can hold memory fo upto last five failure events:

SCM2: 0.37 - 1.5kW, 1 ph, 220-240V,
SCT15: 7.5-15kW, 3ph, 380-415V
Temperature: 25°-55°C
SCT7: 1.1-7.5kW, 3ph, 380-415V,
Enclosure Class: IP22, IP54 (SCT15)

Brio Pump Controller
An in-line electronic pump controller for automatic operation that starts on pressure and stops on low flow. Features include:-

• Start pump on pressure and stops on low flow. The start pressure is adjustable between1.3-5 Bar
• Inbuilt timer delays pump starting and controls pump cycling in low flow conditions eliminating the need for a separate pressure vessel
• Dry run protection with automatic reset
• LED power and run dry indicators
• Built in pressure gauge

Max Motor Size: 1.5kW/1ph
Max Current: 12A
Max Operating Pressure: 10 Bar
Connection: 1" M
Protection: IP65
Dimensions (L/W/H): 190x105x96mm

Brio Top Pump Controller
A high specification in-line electronic pump controller that starts on pressure and stops on either low flow or a settable pressure. It completely replaces the traditional pressure tank/pressure switch systems whilst providing a number of additional control features. These include:-

• Simple start and stop pressure setting with digital pressure display.
• Dry run protection and alternative start
• Motor over current providing protection against overload and blocked water conditions.
• Options of master/slave configuration in twin booster set application.
• Operating/error status indicator via LED’s and display alerts.
• Input and output terminals for remote connection.
• Rotor anti-blocking function used to prevent seizure of mechanical parts during prolonged periods of pump inactivity.

Max. Motor Size: 2.2kW/1ph
Connection: 1" M
Max. Stop Pressure: 10 Bar
Start Pressure Range: 0.5-8 Bar
Max. Rated Current: 16A
Protection: IP65
Max fluid / Ambient Temperature: 55°C
Dimensions (L/W/H): 225x150x115mm
